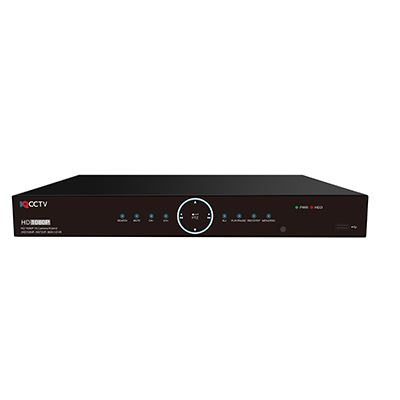

IQ CCTV Hybrid AHD 16 Channel DVR with 1080P Recording IQR1080D16

SKU: DVR IQCCTV 16 IQR1080D16

Delivery date: Check Stock Availability

Be the first to review this product

Quick overview IQ CCTV Hybrid AHD 16 Channel DVR with 1080P Recording IQR1080D16

Select HDD *

£442.99 incl VAT

Qty:

The HD1080P 16 Camera Hybrid IQR1080D4 DVR offers the very latest in digital recording over standard cabling. The unit can record Camera images from either AHD 1080P or 720P cameras or from conventional Analogue Cameras, automatically sensing which format they are. The unit can record all 16 Cameras simultaneously @ 15FPS Full High Definition (1080P) or at 25FPS at 720P or 960H resolutions.

It provides a full HD 1080P monitor output via VGA or HDMI and can be controlled from the front panel touch sensitive controls or by supplied Remote control or USB mouse. The DVR uses P2P technology for quick seamless Network connectivity and is supplied with a dedicated Smartphone/Tablet App that can also receive Push Video alerts with attached Video clips showing alarms detected by Video Motion detection. It has a simple back up procedure via USB or Network. It also comes with a FOC CMS for multi-site remote monitoring

Features:

● Max Recording Resolution: 15FPS 1080P, 25FPS 720P/ 960H

● Accepts 2 Hard Drive of up to 6TB each (not included)

● Ethernet connection 1 x RJ45 Port (10/100M)

● 16 Channel AHD/960H Camera Inputs (BNC)

● 16 Channel Audio Inputs/1 Output

● Back up USB/Internet Explorer

● P2P Remote Access via Smartphone Tablet PC & Mac

Brand:	IQCCTV
Model Number:	IQR1080D16
Video Compression:	H.264
Video System:	NTSC / PAL
Video Input / Output:	16 CH Input, 1 VGA, 1 HDMI
Spot Output:	No
Audio Input / Output:	16 CH Input, 1 CH Output (RCA)
Display Resolution:	PAL: 960x576/1280x720/1920x1080 @ 25fps
Display Feature:	Single, Quad, S.E.Q
Recording Resolution:	PAL: 960x576 (960H), 1280x720 (720P), 1920x1080 (1080P)
Recording Speed:	PAL: 960H Mode / 720P Mode: 25fps 1080P Mode: 15fps
Recording Mode:	Continuous / Manual / Motion Detection
Playback Channel:	1 / 8 Ch
Playback Speed:	PAL: 960H Mode / 720P Mode: 25fps 1080P Mode: 15fps
DVD-RW:	No
Sensor & Alarm I/O:	No
IR Extender Port:	No
Network:	Lan, DHCP, Dynamic IP & DDNS
HDD Interface:	2 SATA HDD, up to 6TB each
Multiplex Operation:	Live Display, Record, Playback, Backup and Network
USB:	2 x USB (For mouse and backup / upgrade)
PTZ Control:	Yes
Mobile Surveillance:	XIQ CMS - Android and iOS
CMS Software:	Yes
Web Browser:	Internet Explorer, Safari, Chrome, Firefox
VGA:	800600, 1024768, 12801024, 1440900, 1920*1080
HDMI:	1080P
Power Supply:	DC 12V
Fan:	No
On / Off Switch:	No
Remote Control:	Yes
Rack Mount Size in (U):	1
Housing Dimension (WxHxD):	380x50x340mm

SMART RECORDING TO SAVE SPACE

DVRs feature continuous and schedule activated recording. In addition to this they feature motion activated recording, so that recordings are only made when the cameras see movement, saving hard drive space and reducing the time required to watch recordings.

PUSH VIDEO

IQCCTV DVR’s have the ability to send push notification alerts to your Smartphone or Tablet. The Mobile application for iOS and Android can be configured to receive push alerts from your IQCCTV DVR based on alarms triggered by camera motion detection or external sensor activation.

SUPPORT FOR LARGE & MULTIPLE SITES

On larger sites requiring more than 16 cameras or for situations where multiple sites need to be managed and viewed together, we offer a free of charge Central Monitoring Software (CMS) for all of our DVRs. This will give live monitoring and control over up to 100 Channels via a remote server.

BACKWARDS COMPATIBILITY

IQCCTV digital video recorders can work in two modes, standard analogue D1/960H & AHD. This allows connection from an already installed standard analogue CCTV camera to an AHD Digital Video Recorder. You can add an IQCCTV camera to provide a cost effective upgrade to HD with the minimum of disruption.

HIGH RESOLUTION RECORDING

For the best playback image quality we can offer DVRs that can record up to 2MP (1920x1080) Full HD to enable collection of the highly detailed images supplied by the IQCCTV Plug & Play HD camera range. The resolution per channel allows detailed review even when these images are viewed in a zoomed in mode.

POWERFUL NETWORK/ REMOTE ACCESS

All our DVRs support remote viewing of cameras live from a PC, Mac, compatible mobile phone or tablet. In addition to this some models offer advanced functions like PTZ Control, Audio, Playback, Backup, Snapshots, I/O Control and Configuration.

SIMPLE P2P SETUP

Just input the Device ID and password, without network configuration, your IQCCTV recorder can connect to your network for remote monitoring. How does it work? The simple answer is "Peer to Peer" or P2P technology. P2P technology can allow the DVR to communicate with other network devices without the need to alter any complicated router settings.

MULTIPLEX OPERATION

IQCCTV Plug & Play HD DVRs are all fitted with the latest available in central processing power to provide pentaplex operation, allowing the DVR to operate 5 important functions simultaneously, so whatever the demands you place on the machine nothing will be missed. The DVR can provide live views, record images, playback previously recorded camera footage, back up data to remote storage devices while being accessed remotely through its network connection.

EXCELLENT CONNECTIVITY

Dual Stream technology for high speed Internet viewing by PC, Mac, Smartphone or Tablet. LAN (local area network) and WAN (wide area network) connector allow the choice of installing a dedicated CCTV network or utilising existing network resources. Complete with multiple outputs for High Definition viewing of live and recorded images. 1080P HDMI connection enables the very best images to make full use of the high quality pictures supplied from the IQCCTV Plug & Play Cameras.
